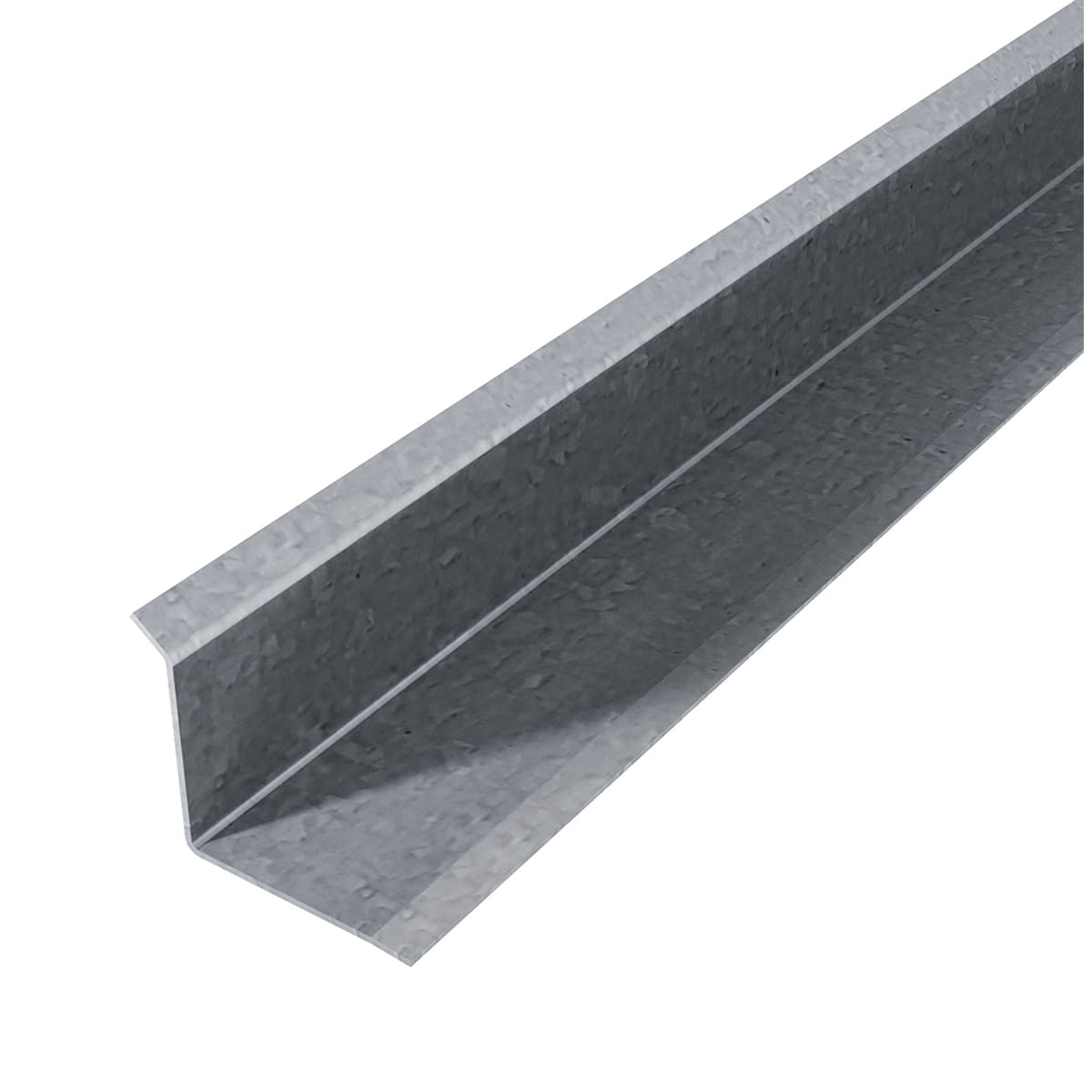

Birtley LA Single Leaf External Wall Steel Lintel 3000 x 214 x 93mm
Birtley Supergalv Single Leaf External Wall Lintel 3000 x 214 x 93mm (L x H x W) is manufactured from mild steel in accordance to BS EN10025-2:2004. The insulation is of expanded polystyrene that comes with a BREEAM rating A+. Has superior corrosion protection due to the supergalv coating over the hot dip galvanisation. This feature increases the life expectancy and the durability of the lintel. Load bearing capacity is at 8kN/m with a defection of 3mm harmonised to BS EN 845‐2:2013.
- Manufactured from strutural grade steels: S275JR/S355JR to EN10025-2:2004
- Galvanized after fabrication to BS EN 1461:2009 for unrivalled corrosion resistance
- All external cavity wall lintels are insulated with expanded polystyrene to BS EN 13163 to reduce thermal bridging
- Plaster key to inner leaf
- Rainwater drip feature to outer leaf
Please Sign in/register to save items.
Birtley Supergalv Single Leaf External Wall Lintel 3000 x 214 x 93mm (L x H x W) is manufactured from mild steel in accordance to BS EN10025-2:2004. The insulation is of expanded polystyrene that comes with a BREEAM rating A+. Has superior corrosion protection due to the supergalv coating over the hot dip galvanisation. This feature increases the life expectancy and the durability of the lintel. Load bearing capacity is at 8kN/m with a defection of 3mm harmonised to BS EN 845‐2:2013.
- Manufactured from strutural grade steels: S275JR/S355JR to EN10025-2:2004
- Galvanized after fabrication to BS EN 1461:2009 for unrivalled corrosion resistance
- All external cavity wall lintels are insulated with expanded polystyrene to BS EN 13163 to reduce thermal bridging
- Plaster key to inner leaf
- Rainwater drip feature to outer leaf
| Product Name | Birtley LA Single Leaf External Wall Steel Lintel 3000 x 214 x 93mm |
| Brand | Birtley |
| Manufacturer Name | Birtley |
| Manufacturer Part Number | LA |
| Compliance Approvals | CE Marked |
| Materials | Steel |
| Range | External Wall Steel Lintel |
| Colour | Chrome |
| Application | External |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Galvanised |
| Product Width | 93 mm |
| Product Weight | 7.3 kg |
| Product Height | 214 mm |
| Product Length | 3000 mm |
