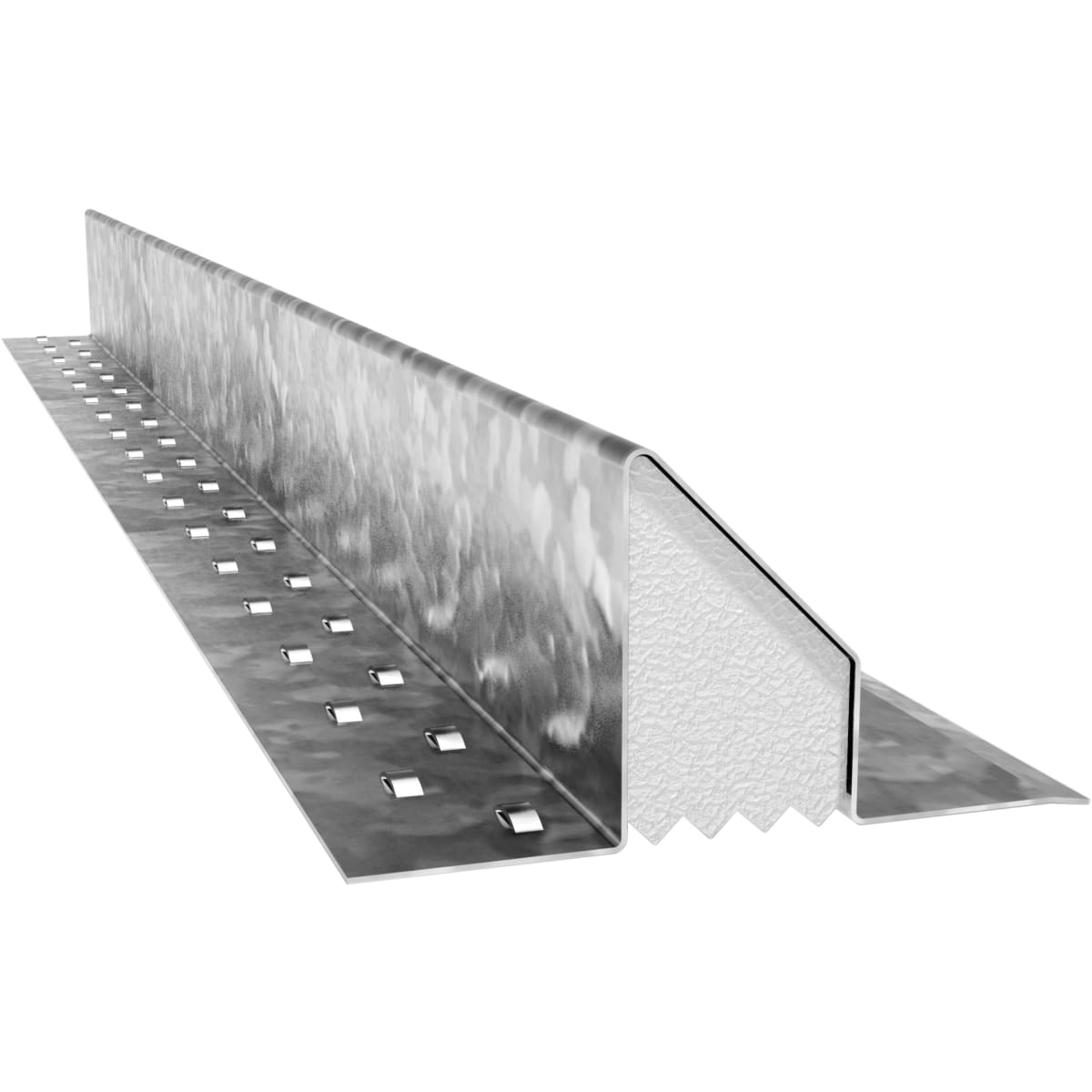

Birtley CB70 Supergalv Cavity Wall Steel Lintel 2400 x 148 x 260mm
Birtley Standard Duty Supergalv Cavity Wall Lintel 2400 x 148 x 260mm (L x H x W) is manufactured from mild steel in accordance to BS EN10025-2:2004. The insulation is of expanded polystyrene that comes with a BREEAM rating A+. Has superior corrosion protection due to the supergalv coating over the hot dip galvanisation. This feature increases the life expectancy and the durability of the lintel. Load bearing capacity is at 13kN/m with a defection of 3mm harmonised to BS EN 845‐2:2013.
- Manufactured from strutural grade steels: S275JR/S355JR to EN10025-2:2004
- Galvanized after fabrication to BS EN 1461:2009 for unrivalled corrosion resistance
- All external cavity wall lintels are insulated with expanded polystyrene to BS EN 13163 to reduce thermal bridging
- Plaster key to inner leaf
- Rainwater drip feature to outer leaf
Please Sign in/register to save items.
Birtley Standard Duty Supergalv Cavity Wall Lintel 2400 x 148 x 260mm (L x H x W) is manufactured from mild steel in accordance to BS EN10025-2:2004. The insulation is of expanded polystyrene that comes with a BREEAM rating A+. Has superior corrosion protection due to the supergalv coating over the hot dip galvanisation. This feature increases the life expectancy and the durability of the lintel. Load bearing capacity is at 13kN/m with a defection of 3mm harmonised to BS EN 845‐2:2013.
- Manufactured from strutural grade steels: S275JR/S355JR to EN10025-2:2004
- Galvanized after fabrication to BS EN 1461:2009 for unrivalled corrosion resistance
- All external cavity wall lintels are insulated with expanded polystyrene to BS EN 13163 to reduce thermal bridging
- Plaster key to inner leaf
- Rainwater drip feature to outer leaf
| Product Name | Birtley CB70 Supergalv Cavity Wall Steel Lintel 2400 x 148 x 260mm |
| Brand | Birtley |
| Manufacturer Name | Birtley |
| Manufacturer Part Number | CB70 |
| Compliance Approvals | CE Marked |
| Materials | Steel |
| Range | Cavity Wall Steel Lintel |
| Colour | Chrome |
| Application | Interior/External |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Galvanised |
| Product Width | 260 mm |
| Product Weight | 10.1 kg |
| Product Height | 148 mm |
| Product Length | 2400 mm |
