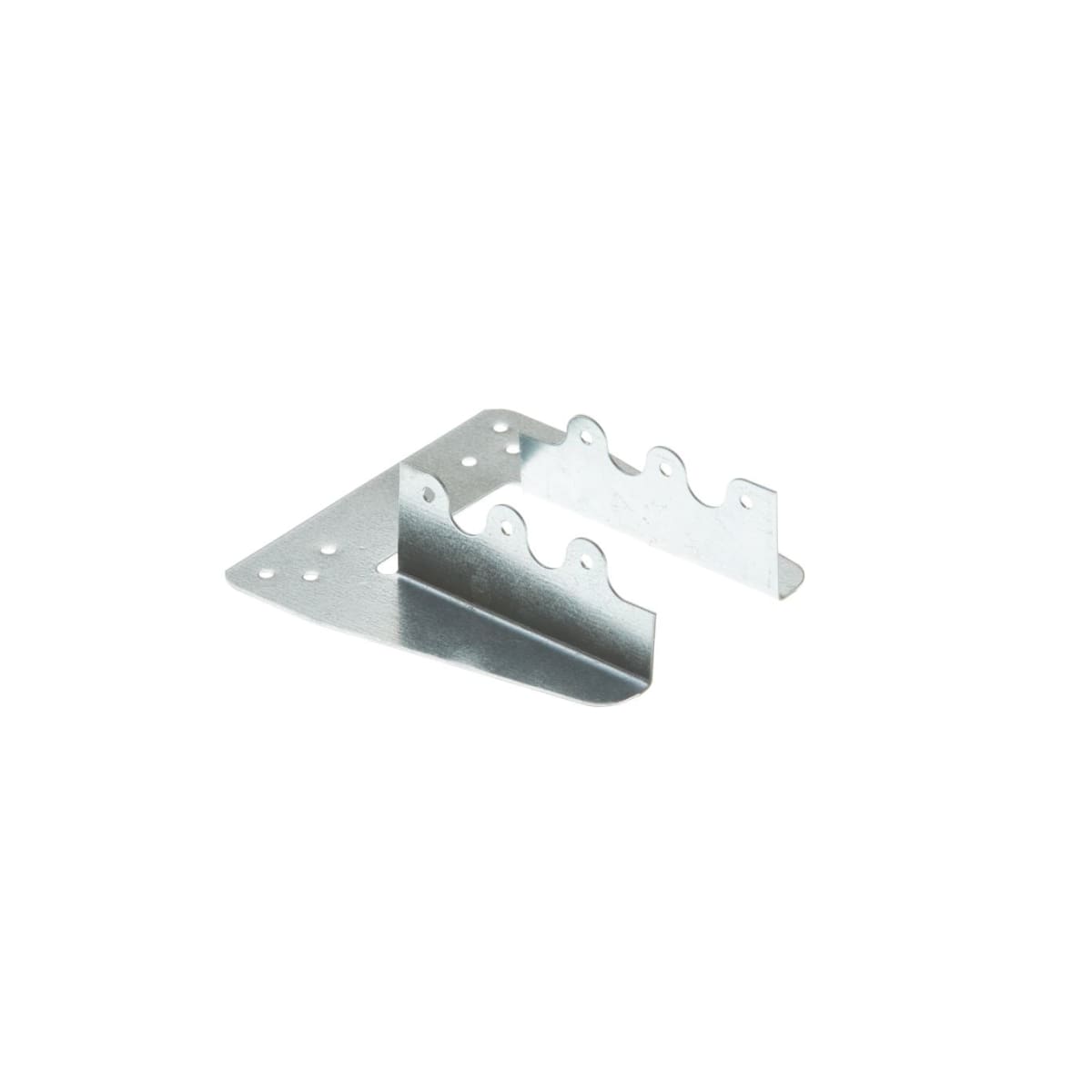

Expamet Truss Clip 117.5mm
SKU: CIBFX513
Roll over image to zoom in
Tap image to zoom in
IDCIBFX513
Building Materials > Metalwork > Metalwork > Expamet Truss Clip 117.5mm
https://www.gibbsanddandy.com/p/expamet-truss-clips-117-5mm-h-zinc-plated-CIBFX513
Product information
Expamet Truss Clips 117.5mm H Zinc Plated is used to attach girders, trusses and rafters to wall plates for wind restraint. The clip provides alignment control between a roof truss and non-bearing walls. Suitable for a 50mm thick truss, it is used especially where one timber piece crosses another. The truss clip measures 32mm projection with 114.3mm as the as wing length.
Features & benefits
- Used to attach trusses and rafters to wall plates.
- Suitable for a 50mm thick truss.
Specifications
| Product Name | Expamet Truss Clip 117.5mm |
| Brand | Expamet |
| Manufacturer Name | Expamet |
| Manufacturer Part Number | TC50 |
| Compliance Approvals | ISO 14001 |
| Materials | Steel |
| Range | Truss Clips |
| Colour | Chrome |
| Application | Interior |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Galvanised |
| Product Height | 117.5 mm |
